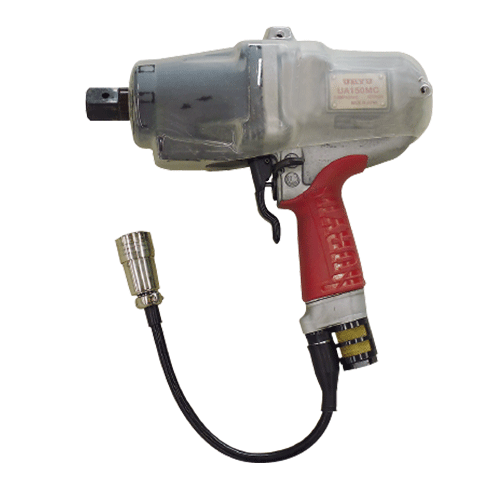

URYU SEISAKU UA-MC OIL PULSE PISTOL TYPE
Various fastening errors such as double-hit, crossthread, foreign objects insertion are detectable.
Fastening quality improved by angle monitoring function provides you with enhanced reliability.
●UAAMC series are capable of angle monitoring in addition to the torque control/monitoring from UAMC series. It enables you to get double-hit, cross-thread, foreign object insertion and so forth by angle monitoring, and improve the fastening quality.
●URYU independent new technology“ Auto Relief Function” (PAT.) is adopted.
Note：Please use the oil-pulse tool with toerue controller :UEC-4800（SD）.
●Performance
| Model | Capacity bolt size mm |
Torque Range N・m |
Free Speed （approx.）rpm |
||||
|---|---|---|---|---|---|---|---|
| 0.4MPa | 0.5MPa | 0.6MPa | 0.4MPa | 0.5MPa | 0.6MPa | ||
| UA40MC | 6 | 3.7-7.0 | 4.9-9.3 | 6.8-12.0 | 3000 | 3300 | 3600 |
| UA50MC | 6-8 | 9.0-16.8 | 11.9-22.5 | 16.6-29.0 | 3800 | 4100 | 4250 |
| UA60MC | 8 | 13.6-25.6 | 18.1-34.2 | 25.1-44.0 | 4700 | 4900 | 5000 |
| UA70MC | 8-10 | 15.5-29.0 | 20.5-38.9 | 28.5-50.0 | 5000 | 5300 | 5700 |
| UA80MC | 10-12 | 24.0-45.0 | 30.0-50.0 | 40.0-60.0 | 5300 | 5600 | 6000 |
| UA90MC | 10-12 | 24.8-46.5 | 32.8-62.2 | 45.7-80.0 | 4800 | 5200 | 5500 |
| UA100MC | 12 | 28.0-52.3 | 36.9-70.0 | 51.4-90.0 | 4600 | 4900 | 5200 |
| UA130MC | 14 | 40.4-75.5 | 53.4-101.0 | 74.2-130.0 | 3800 | 4300 | 4500 |
| UA150MC | 16 | - | 140.0-200.0 | 150.0-220.0 | - | 4200 | 4350 |
| UA40DMC | 6 | 3.7-7.0 | 4.9-9.3 | 6.8-12.0 | 3000 | 3300 | 3600 |
| UA50DMC | 6-8 | 9.0-16.8 | 11.9-22.5 | 16.6-29.0 | 3800 | 4100 | 4250 |
●Specs
| Model | Overall length less bit or socket mm |
Weight less bit or socket kg |
From center to outside mm |
Sq. drive | Air hose size (inside) mm |
Air Consumption m3／ min |
Noise level dB(A) |
|---|---|---|---|---|---|---|---|
| UA40MC | 170 | 1.10 | 26 | 9.5 | 6.5 | 0.20 | 78 |
| UA50MC | 170 | 1.10 | 26 | 9.5 | 6.5 | 0.25 | 78 |
| UA60MC | 175 | 1.14 | 26 | 9.5 | 8.0 | 0.40 | 80 |
| UA70MC | 187 | 1.24 | 26 | 9.5 | 8.0 | 0.45 | 80 |
| UA80MC | 195 | 1.55 | 26 | 9.5 | 8.0 | 0.48 | 80 |
| UA90MC | 203 | 1.70 | 28 | 12.7 | 8.0 | 0.53 | 82 |
| UA100MC | 215 | 2.05 | 30 | 12.7 | 8.0 | 0.55 | 82 |
| UA130MC | 233 | 2.80 | 36 | 12.7 | 11.0 | 0.73 | 82 |
| UA150MC | 251 | 4.00 | 40 | 19.0 | 12.7 | 0.70 | - |
| UA40DMC | 170 | 1.10 | 26 | 6.35Hex | 6.5 | 0.20 | 78 |
| UA50DMC | 170 | 1.10 | 26 | 6.35Hex | 6.5 | 0.25 | 78 |
※Recommended Air Pressure : 0.6MPa
※The model name suffixing (D) is the Quick-change driver anvil type.
