Features about TORQUE CONTROL ELECTRIC ANGLE NUTRUNNERS
Uryu seisaku UAN-F series tools and UEC-160AN CONTROLLER
Features :
• Wide range speed control due to high speed motor.
• Data communication by interface to external systems via built-in RS232C board.
Functions :
• High accurate fastening with Torque/Angle control.
• Display Torque/Angle curve (displays these curves on front touch panel in touch panel type controller).
• Up to 16 multi-steps fastening by programming with controller or through setup software of PC.
• Data storage capacity: 12,000 data points.
• Interlock with line is possible due to terminals available in the rear panel.
| Model | Capacity bolt size mm |
Max Torque N・m |
Free Speed (approx.) rpm |
Overall length (approx.) mm |
Weight less bit or socket kg |
From center to outside mm |
Angle height (approx.) mm |
Sq drive shank |
|---|---|---|---|---|---|---|---|---|
| UAN-F087-015 | 5-8 | 15 | 1215 | 399 | 1.43 | 14.0 | 49.0 | 9.5 |
| UAN-F130-025 | 8 | 25 | 1060 | 419 | 1.53 | 14.0 | 49.0 | 9.5 |
| UAN-F130-040 | 8-10 | 40 | 640 | 444 | 1.76 | 18.0 | 52.5 | 9.5 |
| UAN-F130-060 | 10-12 | 60 | 440 | 444 | 1.77 | 18.0 | 58.0 | 12.7 |
| UAN-F130-080 | 10-14 | 80 | 325 | 488 | 3.13 | 22.5 | 74.0 | 12.7 |

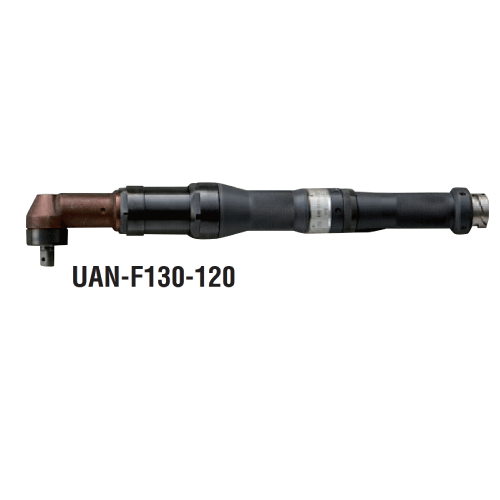

| UAN-F130-120 | 12-16 | 120 | 195 | 488 | 3.13 | 22.5 | 74.0 | 12.7 |
