Features about TORQUE CONTROL ELECTRIC ANGLE NUTRUNNERS
Uryu seisaku UAN-F series tools and UEC-160AN CONTROLLER
Features :
• Wide range speed control due to high speed motor.
• Data communication by interface to external systems via built-in RS232C board.
Functions :
• High accurate fastening with Torque/Angle control.
• Display Torque/Angle curve (displays these curves on front touch panel in touch panel type controller).
• Up to 16 multi-steps fastening by programming with controller or through setup software of PC.
• Data storage capacity: 12,000 data points.
• Interlock with line is possible due to terminals available in the rear panel.

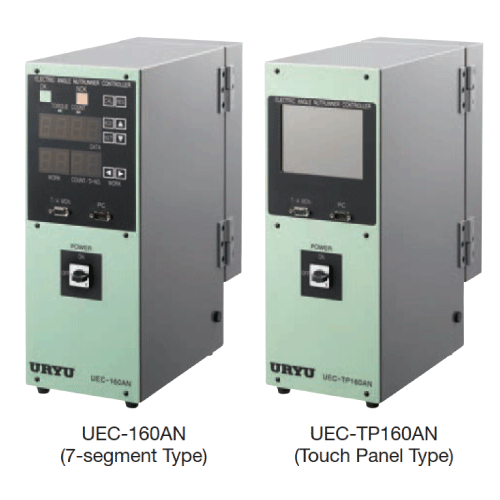

Model : UEC-160AN , UEC-TP160AN
| Power supply | AC 100~230V, 1-phase |
|---|---|
| Power frequency | 50 / 60Hz |
| Ambient temperature | 0〜45℃ (no freeze) |
| Ambient Humidity | 30〜90% (no dewfall) |
| Consumption | Approx. 80W |
| Weight | Approx. 16.60kg |
| Dimensions (mm) | 350(D) × 170(W) × 442 (H) |
| Main functions | Either of torque control and angle monitor, |
| or angle control and torque monitor | |
| Parameter set | UEC-160AN : Pressing front key pads , or input from PC. |
| UEC-TP160AN : Front touch panel setting, or input from PC. | |
| Front display panel | UEC-160AN : setting value, torque/angle . Work number, Count number |
| UEC-TP160AN : 25 letters and 15 lines 4-digit: Torque/Count (orange) | |
| Lamp display | Total OK (green), NOK, NG (red) |
| Judgment TOR QUE/COUNT(orange) |
Options : Setting PC Cable (Crossover) Part Number : 910-020-0
